TrolMaster Product Documents

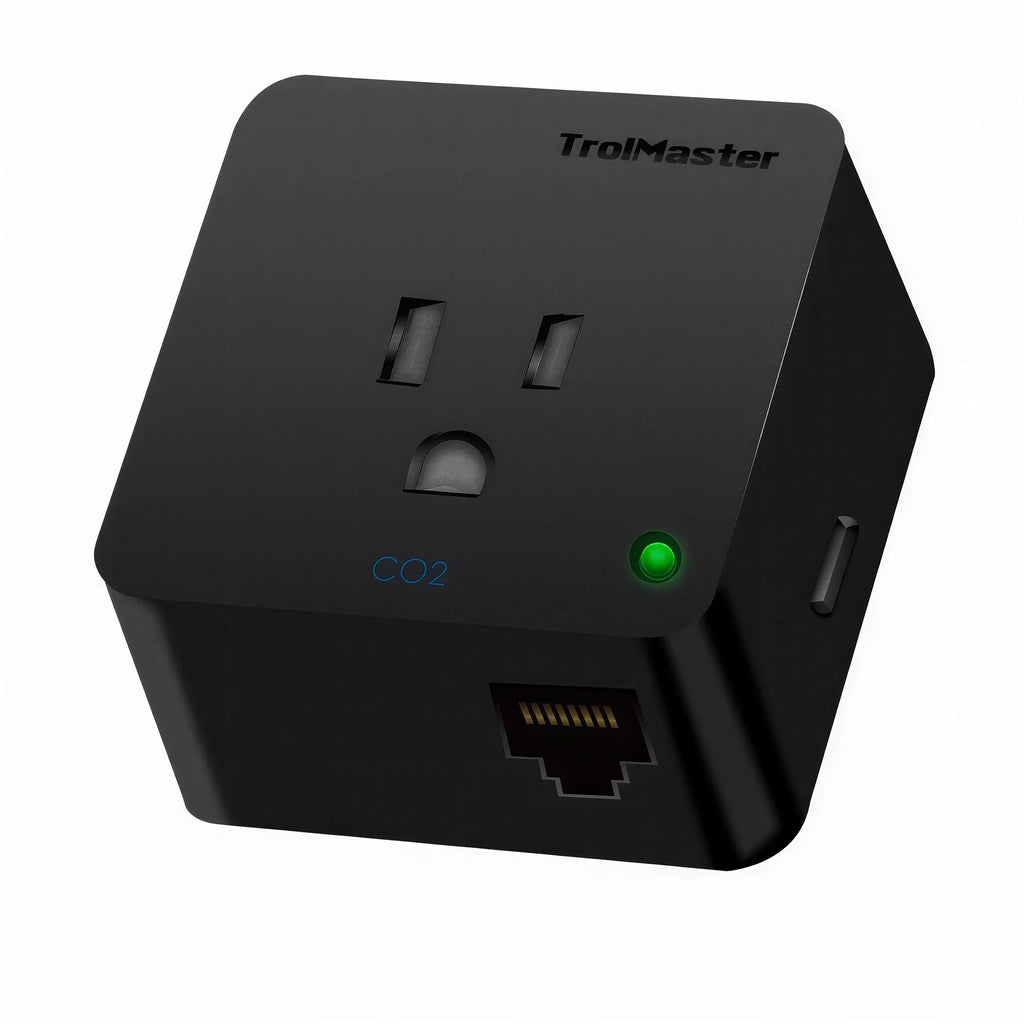

The TrolMaster DSC-1 CO2 control / device module allows user the to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-x. Any CO2 device that is 10-amps @ 120 volts or less can be controlled by the DSC-1.
Features
- LED Power Indicator
- 3-Prong Attaching Plug
- RJ12 Cable Socket
- Addressing
- Plug and Play

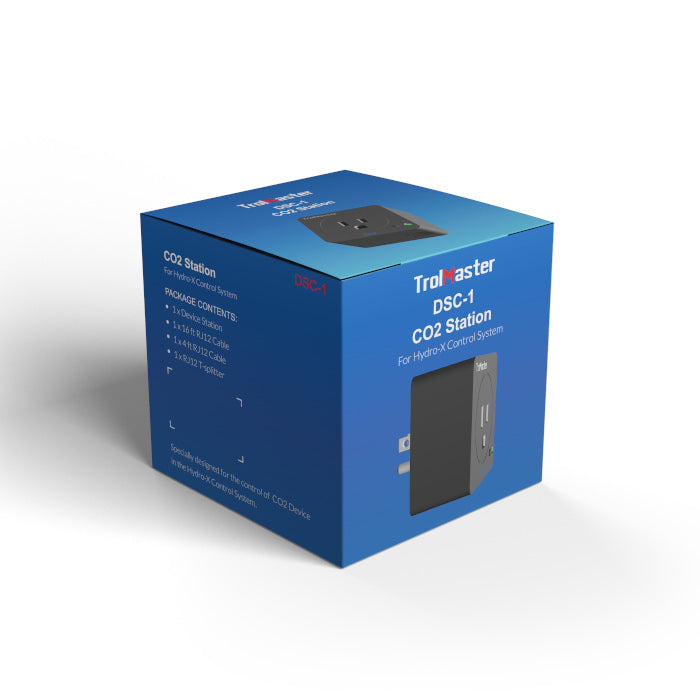

In the Box:
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specifications
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10 Amps
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Environments: Temperature 32-122 F, Humidity = 90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
| Brand | TrolMaster |
|---|---|
| SKU | DSC-1 |
| Weight (lb.) | 2.0000 |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Ventilation Control, CO2 Control |
TrolMaster Hydro-X CO2 Station
TrolMaster Hydro-X CO2 Station
What does the TrolMaster DSC-1 CO2 Station control with Hydro-X?
The TrolMaster DSC-1 CO2 Station connects standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-X system.
Which CO2 equipment can the TrolMaster DSC-1 CO2 Station control?
The TrolMaster DSC-1 CO2 Station controls CO2 devices rated at 10 amps at 120 volts or less.
How does the TrolMaster DSC-1 CO2 Station connect to Hydro-X?
The TrolMaster DSC-1 CO2 Station connects through an RJ12 cable socket and provides plug-and-play operation with Hydro-X.
What comes with the TrolMaster DSC-1 CO2 Station?
The TrolMaster DSC-1 CO2 Station package includes one device station, one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter.
