Botanicare Product Documents
Botanicare TriLock Assembly InstructionsThe Botanicare TriLock Trellising Support is an optional upgrade for Botanicare Slide Bench systems.
We understand that your grow is unique. That’s why we’ve developed options to improve your experience with a more robust trellising support designed to enhance the rigid connection to the bench. The TriLock Trellising Support is three times stronger than the standard support and accepts three different trellising types - 3/4" EMT, 3/4" PVC & 1" EMT.
Whats included? - Each box contains everything you need to support two uprights

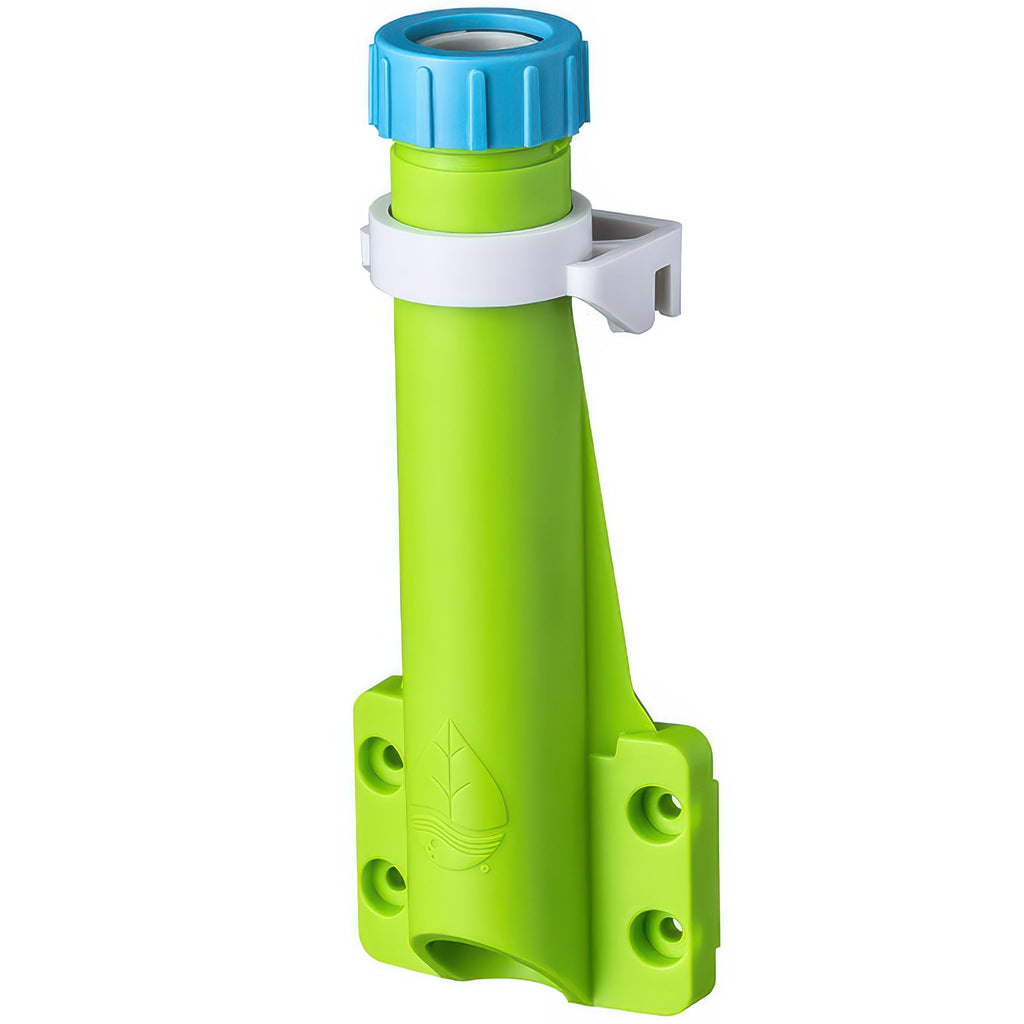

- (x2) Upright Supports
- (x2) Locking Caps
- (x2) Tray Clips
- (x6) Upright Brushings
- Installation Hardware
Please Note:

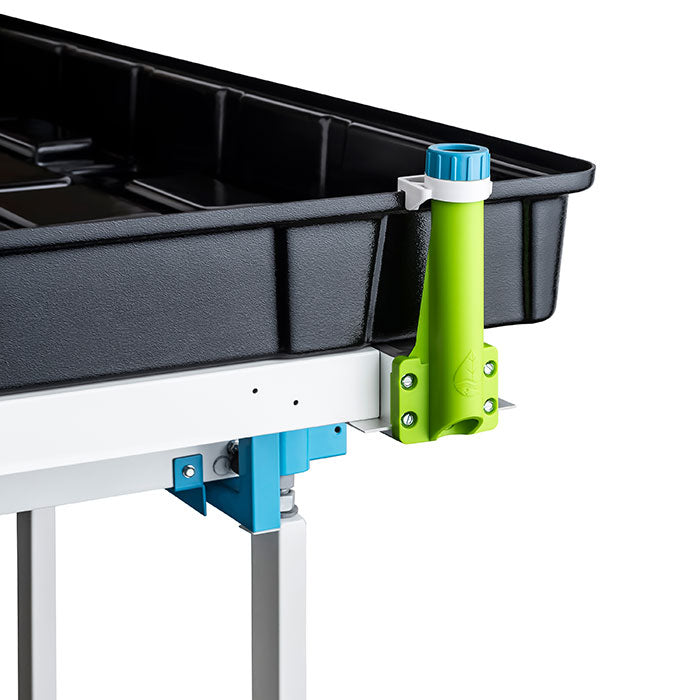

Because the Botanicare TriLock support is connected to the tray support extrusion, the overall system width will increase by 2.25" (5' Wide OD: 62.25", 4' Wide OD: 50.25")
| Brand | Botanicare |
|---|---|
| SKU | HGC706110 |
| Weight (lb.) | 1.0900 |
| Length (in.) | |
| Width (in.) | |
| Prop 65 | false |
| Height (in.) | |
| Shipping Restrictions | AK, HI |
| Lead Time | 5-7 |
| Hazardous Material | false |
| UPC | 757900001612 |
| UL Listed | No |
| ETL Listed | No |
What does the Botanicare TriLock Trellising Support add to a Botanicare Slide Bench system?
The Botanicare TriLock Trellising Support provides a more robust trellising connection to the bench and offers a connection three times stronger than the standard support.
Which trellising materials work with the Botanicare TriLock Trellising Support?
The Botanicare TriLock Trellising Support accepts 3/4-inch EMT, 3/4-inch PVC, and 1-inch EMT.
What components come with the Botanicare TriLock Trellising Support?
The Botanicare TriLock Trellising Support package includes two upright supports, two locking caps, two tray clips, six upright bushings, and installation hardware. The package supports two uprights.
How does the Botanicare TriLock Trellising Support affect Botanicare Slide Bench system width?
The Botanicare TriLock Trellising Support increases overall system width by 2.25 inches because the support connects to the tray support extrusion. A 5-foot-wide system has a 62.25-inch outside dimension, and a 4-foot-wide system has a 50.25-inch outside dimension.
